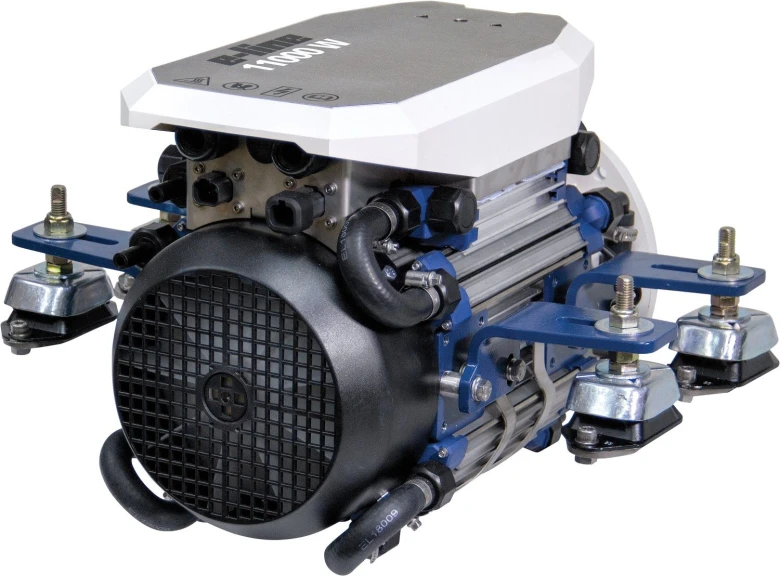

    Vetus E-Line 11 kW inboard elektrische voorstuwingsmotor 48v, liquid koeling

    Merk: Vetus
    Toon alle Motoren
    Vetus E-Line 11 kW inboard elektrische voorstuwingsmotor 48v, liquid koeling
    €6.906,50 Leverbaar
    The E-line 11kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce... Toon meer
    +-
    Toevoegen aan winkelwagen

    Of betaal in 3 termijnen met IN3, 0% rente

    Of betaal in 12, 24, 36 maanden met Spraypay

    *In de checkout staan de opties, *Let op, Geld lenen kost geld.


    • Afrekenen in SSL beveiligde omgeving
    • Gratis verzending vanaf €100,00 (NL)
    • Fysieke winkel in Alkmaar
    • 6845 positieve reviews!
    Vetus E-Line 11 kW inboard elektrische voorstuwingsmotor 48v, liquid koeling

    Productomschrijving

    The E-line 11kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption.

    The Motor brings you peace and tranquility when cruising on the water without being distracted. Designed to be energy-efficient, the system requires less battery capacity compared to traditional electric motors. This facilitates a more compact installation, without compromising on performance. To ensure optimal performance and prevent overheating, the motor is equipped with a liquid cooling system. This helps maintain a stable operating temperature enhancing the motor's longevity and reliability.

    The motor features Active Electronic Braking, which offers rapid deceleration and precise control, enhancing safety and maneuverability.With a peak power of 13,3 kW, you'll have the acceleration you desire. Whether you're exploring open waters or navigating tight spaces, this motor will provide the responsiveness you need.

    Supplied With
      • Swap & Go motor brackets and motor mounts type EMX65.
      • Integrated thrust bearing.
      • Mounting flange 4" suitable for Combiflex 12, Bullflex type 1.
      • MPE1KB key switch - all-in-one solution; V-CAN power supply, external 12 VDC power supply and anti-theft.
      • MPE1MBV monitoring panel - V-CAN monitoring, battery indication, motor alarms and motor status.
      • IV4812360 converting 48 VDC to the required V-CAN power supply 12 VDC.

    Additional Parts Required
      • One of the E-Drive V-CAN Control Lever with different propulsion modes to enable the right power at the right moment.
      • The closed circulation keel cooling system for all water (EDKCSET) or;
      • The fresh water cooling system for fresh water (EDFWSET).

    Advanced Monitoring Sets
    • Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and postioning you can become the master of your vessel.
    • Choose from a wide variety of monitoring sets that suit your needs the best.

    Specifications

    Max. speed (RPM)1600
    Max. torque (Nm)70
    Motor typeBrushless induction motor
    Voltage (V)48
    Indicative comparable combustion engine (hp)22 hp
    Indication for suitable boat lengthUp to 11 meters (36 feet) or 7 ton
    CAN busV-CAN
    Maximum output power11,2 kW
    Maximum input current draw295 A
    Indicative energy consumption1 kWh @ 6 km/u (3,5 knt)
    Cooling systemsLiquid cooled
    Weight (kg)71
    Length (mm)485
    Height (mm)335
    Width (mm)504

    Specificaties

    Artikelnummer
    ELINE110
